EPC Gen2 multiple reading four Channel impinj fixed uhf rfid reader module with development board with TCP/IP ethernet rs232 provide free sdk
1,TOP1-Quality 4ports impinj r2000 uhf rfid reader module with development board
2,Long read range 1-35m which can adjust the read range ,and can read multi-tags 1-500tags/second(depend on antenna/tag/application)
3, With wide frequency 902-928mhz(American frequency) and 865-868mhz (Europe frequency)
4,If add development board support Mutil-connector:Ethernet TCP/IP(RJ45) , rs232 TTL uart(serial port) ,RS-485 interface
5,Excellent &Stable ,can be Embedded in a variety of equipment like Handheld reader, provide free English sdk and free test tag sample
pls feel free to contact us for your requirement
skype:invelion02
whatsapp: +8613077887276
E-mail: lisa@invelion.net

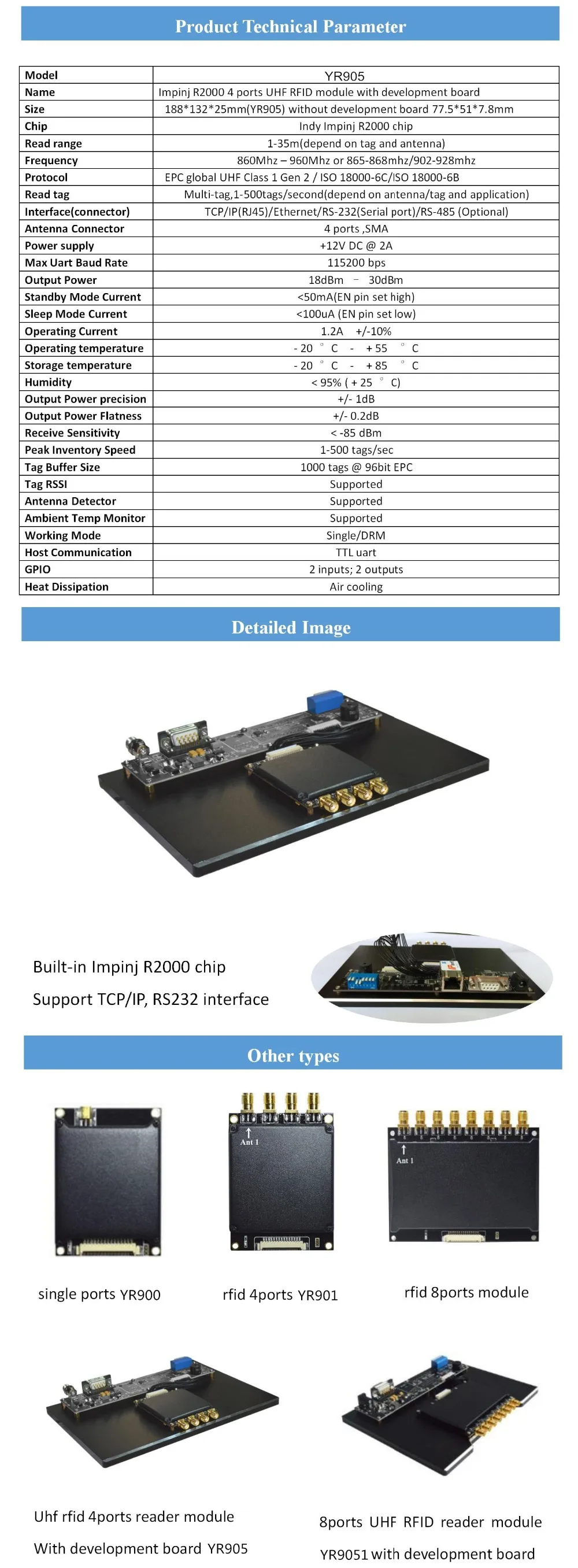

Table one: overview of the module
|
Module P/N |
YR901 |
|
Photograph |
|
|
RF Channel |
four channels |
|
RF connector |
SMA |
|
Antenna connection mode |
Can’t be configured to transceiver separation mode |
|
Interface connector |
Molex 53261-1571 |
|
RF connector material |
Brass (gold plating) |
|
PCB material |
Rogers FR4 (gold plating) |
|
RF Shield Material |
Aluminum alloy |
Table two: the connector PIN feet definition
|
|
||
|
PIN |
Definition |
Description |
|
1 |
GND |
Connect to ground together |
|
2 |
GND |
|
|
3 |
3.7V – 5V DC |
Connect to power together |
|
4 |
3.7V – 5V DC |
|
|
5 |
GPIO 3 |
Output |
|
6 |
GPIO 4 |
Output |
|
7 |
GPIO 1 |
Input |
|
8 |
Buzzer |
Already driven, output current > 50mA |
|
9 |
UART_RXD |
TTL compatible
|
|
10 |
UART_TXD |
|
|
11 |
USB_DM |
For test only |
|
12 |
USB_DP |
|
|
13 |
GPIO 2 |
Input |
|
14 |
EN |
High level enables module |
|
15 |
GPIO 5 |
RS-485 direction control |
